0.05T Sticky Silicone Gel Pads EPDM Material ROHS Phenol Tested
Product Details:
| Place of Origin: | China |
| Brand Name: | BOALV |
| Certification: | A2180010218101002E |
| Model Number: | 0.05-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | USD100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bags+carton box |
| Delivery Time: | 8 working days |
| Payment Terms: | Paypal, T/T |
| Supply Ability: | 31,200,000 pcs/month |
|
Detail Information |
|||
| Color: | Black, White | Material: | Silicon, NBR, EPDM, NR, CR |
|---|---|---|---|
| Usage: | Feet , Foot | Hardness: | 30-75 Degrees |
| Highlight: | 0.05T sticky silicone gel pads,ROHS sticky silicone gel pads,0.05T silicone sticky pads |
||
Product Description

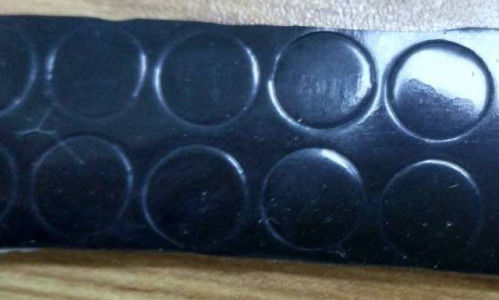

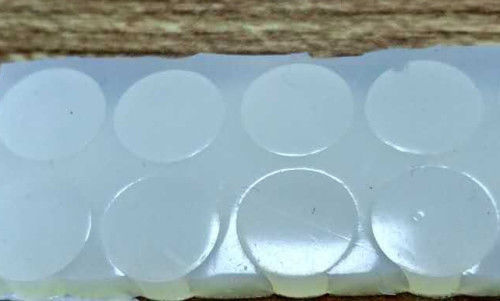

Silicone Rubber Pad Adhesive Backed Round Pad EPDM Material
Silicon part are usually used together with double-sided adhesive tape. It can be used as cushion in computer, wireless charger, etc. It is not so smelly as NR rubber, this is why it is so popular. But NR, NBR are also needed in the case where people will not touch them. EPDM is required under the sunshine or malcondition.
| Item | Testing value | Unit | Test standard |
| materials | silicon+PET | - | - |
| color | all colors | - | per customer reqirment |
| thickness | 0.05T-5T | mm | thickness gauge |
| continuous temp | -30℃-160℃ | ℃ | EN344 |
| relative humidity range | 15-98 | % | - |
| hardness(shore A) | per customer reqirment | Shore A | ASTM-D2240 |
| elogation rate | ＞300 | % | ASTM-D412 |
| tesile strength | 24.1 | Mpa | ISO527-1 Amd. 1-2005,ISO 527-3-1995Cor.2-2001(E) |
| break elongation | ＞85 | % | |
| most strength | 260.1 | N | |
| tension test | ＞7 | kgf | ASTM D4112 |
| breakdown voltage | ＞15 | kv/mm | IEC:60243-1:1998 |
| friction coefficient | 0.58-0.78 | μ | ASTM D1894 |
| surface resistivity | 2.9*1013 | Ω/sq | ANSI/ESD ST,11.11-2001 |
| ROHS test | pass | - | EPA3050B/EN112:2001 |
| phenol test | pass | - | DIN53313 |
Usage example:
