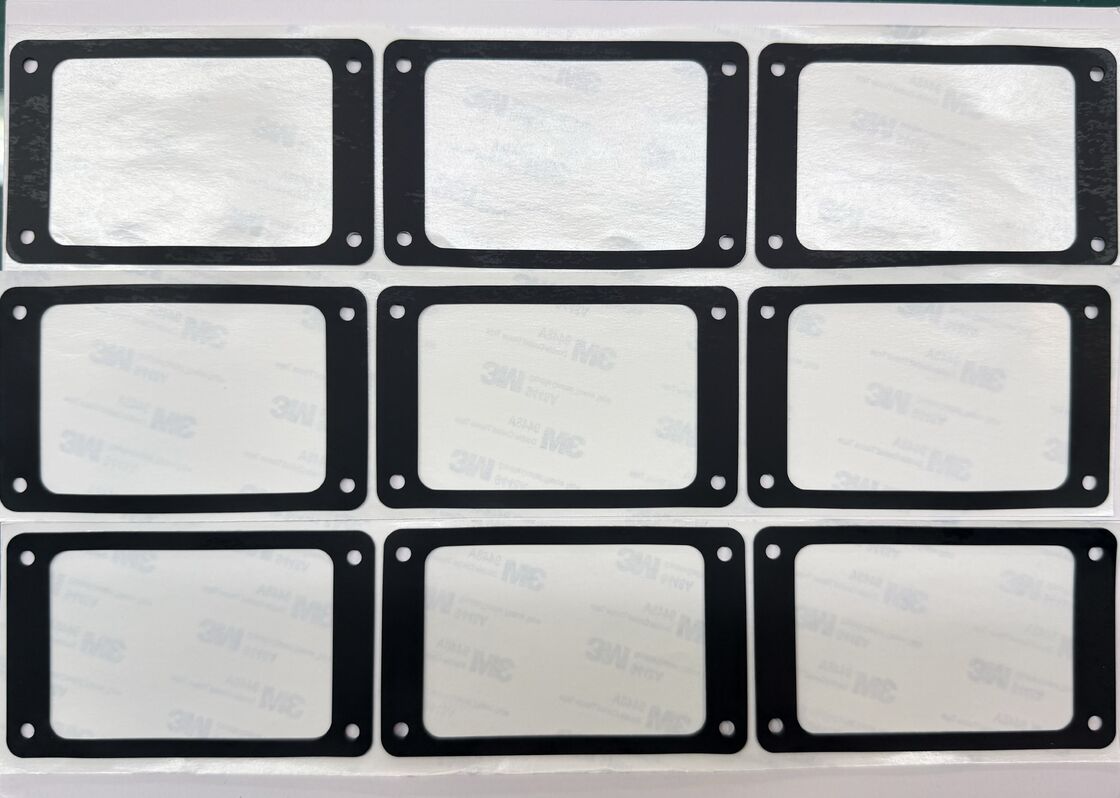

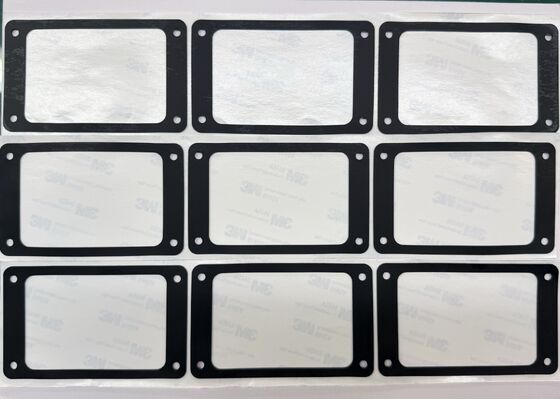

Black Silicon Rubber Pad with Holes For Automotive and Energy Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | BOALV |
| Certification: | A2180010218101002E |
| Model Number: | 0.05-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | USD100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bags+carton box |
| Delivery Time: | 8 working days |
| Payment Terms: | Paypal, T/T |
| Supply Ability: | 31,200,000 pcs/month |
|
Detail Information |
|||
| Color: | Black | Material: | Silicone |
|---|---|---|---|
| Usage: | Computer, Blue-tooth, Loudspeaker Box And Automotive. | Hardness: | 30-70 Degrees |
| Highlight: | ROHS Automotive Silicone Rubber Pad,180 Centi Degree Silicone Rubber Pad,ROHS High Temp Silicone Mat |
||
Product Description
Black Silicon Rubber Pad with Holes For Automotive and Energy Storage
Silicon pad is a cost efficient sheeting solution. It is often used in industry due to the easy manufacturing and shaping process.
Silicon part are usually used together with double-sided adhesive tape. It can be used as cushion in computer, wireless charger, automobile, etc. It is not so smelly as NR rubber and resist high temperature to 180℃, this is why it is so popular. But NR, NBR are also needed in the case where people will not touch them. EPDM is required under the sunshine or malcondition.
| Item | Testing value | Unit | Test standard |
| materials | silicon+PET | - | - |
| color | all colors | - | per customer reqirment |
| thickness | 0.05T-5T | mm | thickness gauge |
| continuous temp | -30℃-160℃ | ℃ | EN344 |
| relative humidity range | 15-98 | % | - |
| hardness(shore A) | per customer reqirment | Shore A | ASTM-D2240 |
| elogation rate | ＞300 | % | ASTM-D412 |
| tesile strength | 24.1 | Mpa | ISO527-1 Amd. 1-2005,ISO 527-3-1995Cor.2-2001(E) |
| break elongation | ＞85 | % | |
| most strength | 260.1 | N | |
| tension test | ＞7 | kgf | ASTM D4112 |
| breakdown voltage | ＞15 | kv/mm | IEC:60243-1:1998 |
| friction coefficient | 0.58-0.78 | μ | ASTM D1894 |
| surface resistivity | 2.9*1013 | Ω/sq | ANSI/ESD ST,11.11-2001 |
| ROHS test | pass | - | EPA3050B/EN112:2001 |
| phenol test | pass | - | DIN53313 |
Usage example:
