0.08mm Brown Die Cut Adhesive Tape Single Sided Polyimide PET Material
Product Details:
| Place of Origin: | Jiangxi China, USA |
| Brand Name: | BOALV |
| Certification: | E93687 |
| Model Number: | 0.01-0.08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | USD100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bags+carton box |
| Delivery Time: | 8 working days |
| Payment Terms: | Paypal, T/T |
| Supply Ability: | 31,200,000 pcs/month |
|
Detail Information |
|||
| Orientation: | Vietnam | Material: | Polyimide, PI |
|---|---|---|---|
| Usage: | For Cleaner, Loudspeaker Box, Etc | Original: | Local Or Kapton |
| Characteristics: | High Temperature Resistance，180-250℃ | Thickness: | 0.01-0.08mm |
| Highlight: | Polyimide Die Cut Adhesive Tape,0.08mm Die Cut Adhesive Tape,0.08mm Single Sided Adhesive Tape |
||
Product Description

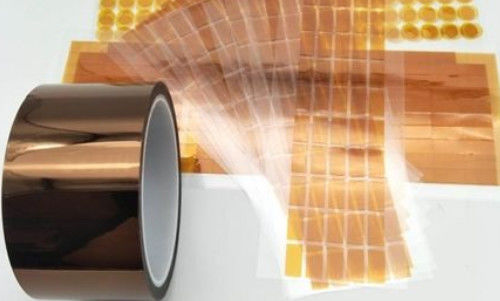

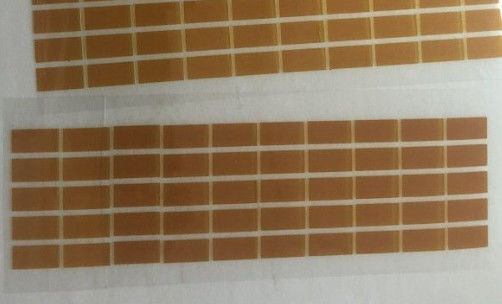

Brown Die Cut Adhesive Tape Single Sided Polyimide PET Material
PI tape consists of polyimide and silicon PSAs, which required fluoroplastic film when die-cutting. The coating precison reaches ±2.5μm without scratch. This product, with hight temperature resistance and good chemical resistance, suits for SMT PCBA, battery, high-level appliance, voltage transformer and motor insulation.
Storage temprature: 5-25℃, relative humidity 65% dry place, avoid sunshine.
High temperature tape example:
| glue | siloxane adhesive | composition | PoIyimide | 25microns |
| glue thickness | 40microns | total thickness | 65microns | |
| color | amber etc. | usage | PCBA | |
| item | unit | data | remarks | |
| peeling force | g/in | 50+/-50 | ||
| tensil stress | MD | % | 60 | |
| TD | % | 60 | ||
| heat resistance | excellent | 260°/30minutes | ||
| solubility | good | 20%HCL,NaOH/20hours | ||
| expansion force | Kg/in | 8 | ||
