5.0mm Thick Black Silicone Rubber Pad ASTM Tested Five Hole Automotive Seals
Product Details:
| Place of Origin: | China |
| Brand Name: | BOALV |
| Certification: | A2180010218101002E |
| Model Number: | 0.05-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | USD100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bags+carton box |
| Delivery Time: | 8 working days |
| Payment Terms: | Paypal, T/T |
| Supply Ability: | 31,200,000 pcs/month |
|
Detail Information |
|||
| Color: | Black | Material: | Silicon |
|---|---|---|---|
| Usage: | Computer, Blue-tooth, Loudspeaker Box And Automotive. | Hardness: | 30-75 Degrees |
| Surface Processing: | Need Treatment Chemicals, Or Need Not With PET. | ||
| Highlight: | 5.0mm Silicone Rubber Pad,ASTM Silicone Rubber Pad,5.0mm automotive rubber seals |
||
Product Description

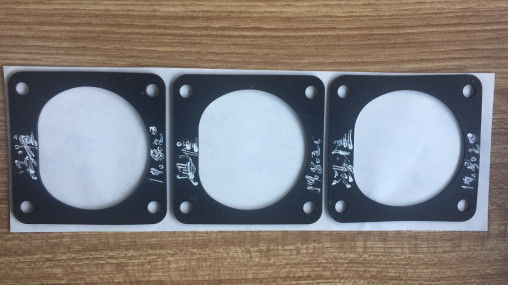

Black Silicon Rubber Pad Five Holes For Automotive Spare Parts
Due to their special chemistry, silicones have unique properties such as chemical and flame resistance, high tear resistance and a wide operating temperature range.
Silicon part are usually used together with double-sided adhesive tape. It can be used as cushion in computer, wireless charger, automobile, etc. It is not so smelly as NR rubber and resist high temperature to 180℃, this is why it is so popular. But NR, NBR are also needed in the case where people will not touch them. EPDM is required under the sunshine or malcondition.
| Item | Testing value | Unit | Test standard |
| materials | silicon+PET | - | - |
| color | all colors | - | per customer reqirment |
| thickness | 0.05T-5T | mm | thickness gauge |
| continuous temp | -30℃-160℃ | ℃ | EN344 |
| relative humidity range | 15-98 | % | - |
| hardness(shore A) | per customer reqirment | Shore A | ASTM-D2240 |
| elogation rate | ＞300 | % | ASTM-D412 |
| tesile strength | 24.1 | Mpa | ISO527-1 Amd. 1-2005,ISO 527-3-1995Cor.2-2001(E) |
| break elongation | ＞85 | % | |
| most strength | 260.1 | N | |
| tension test | ＞7 | kgf | ASTM D4112 |
| breakdown voltage | ＞15 | kv/mm | IEC:60243-1:1998 |
| friction coefficient | 0.58-0.78 | μ | ASTM D1894 |
| surface resistivity | 2.9*1013 | Ω/sq | ANSI/ESD ST,11.11-2001 |
| ROHS test | pass | - | EPA3050B/EN112:2001 |
| phenol test | pass | - | DIN53313 |

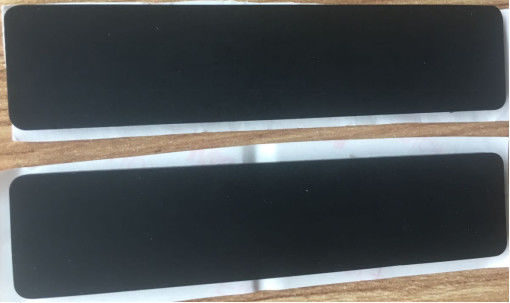

Usage example:
