10.0mm Thick Silicon Heat Conductive Material 400 centigrade 0.8W/mk
Product Details:
| Place of Origin: | China; USA |
| Brand Name: | BOALV |
| Certification: | E236040 |
| Model Number: | 0.3-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | USD100 |
|---|---|
| Price: | Negotiable |

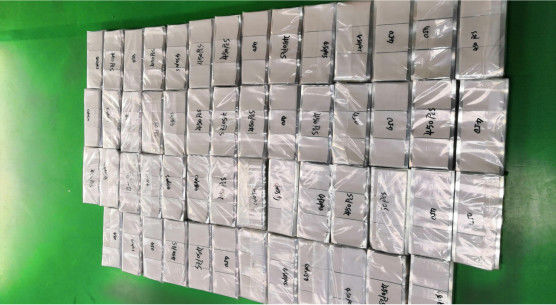

| Packaging Details: | PE bags+carton box |
| Delivery Time: | 8 working days |
| Payment Terms: | Paypal, T/T |
| Supply Ability: | 31,200,000 pcs |
|
Detail Information |
|||
| Color: | Grey, Pink, White, Black | Thickness: | 1-10mm |
|---|---|---|---|
| Material Brand: | Local Or Bergquist, Panasonic | Thermal Conductivity: | 0.8-1.6 W/(m.k) |
| Working Temperature: | 400℃ | Least Roll Width: | 13 Mm |
| Highlight: | Heat Conductive Material 0.8W/mk,10.0mm Heat Conductive Material,400 centigrade heat conductive silicone |
||
Product Description

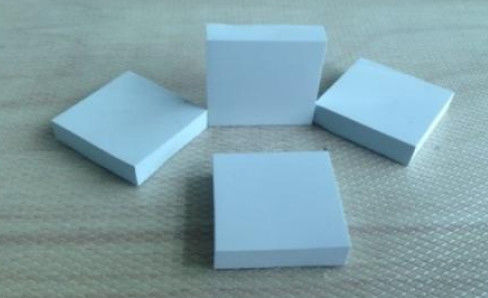

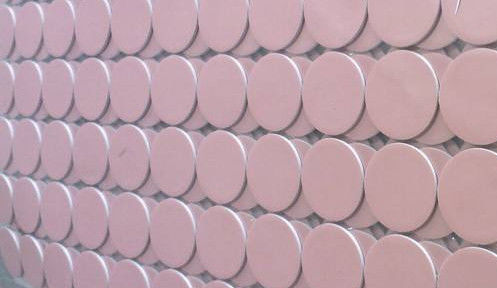

High Heat Conductive Silicon
These heat conductive silicon products are applied to sink, PCBA, because of their high heat dissipating capacity and electrial isolation performance, as well as their high heat conductivity and compatible surface characteristic.
Thermally conductive silicone interface pads are engineered to provide hight levels of conductivity for a wide range of uses that help speed device assembly and extend component life. Soft and comfortable for easy handling, these pads can be die cut to fit most applications and offer excellent dielectric strength.
Physical and Chemical Properties/Characteristics:
| Appearance:Solid | Form:in piece |
| Colour:Can be in dirrerent colours |
Odour:Odorless |
| PH Value:5~7 | Boiling Point/Boiling Range:>700℃ |
| Decompostion temperature:N/A | Flash Point:N/A |
| Spontaneous temperature:N/A | Explosion Limits:N/A |
| Vapor Pressure:N/A | Vapor Density:N/A |
| Specific Gravity:>1.6(25℃) | Solubility in water:N/A |
